In stock

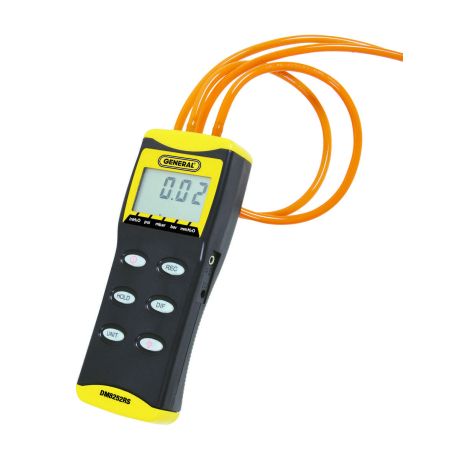

0 to 2 psi Precision Digital Manometer

Item #
DM8252

The #DM8252 is optimized for applications in which gauge or differential pressure ranges from 0 to 2 psi. Its resolution of 0.004 psi is sufficient for measuring low, static or negative pressure with ±0.3% accuracy.

  • Display unit options: psi, in.H2O, bar, in.Hg, mmH2O and mbar
  • Min/Max memory + data hold
  • Large backlit dual-readout LCD that displays the measured pressure above a relative time clock (which enables resetting of the measurement timeline)
  • One-button relative zero setting
  • Includes two connection hoses
  • Optional #ASFTKIT PC data logging software/hardware is available
  • Auto power off (can be disabled for data logging)
Specifications
  • Measurement range/resolution: 0 to 2 psi/0.004 psi
  • Measurement accuracy: ±0.3% of full-scale value
  • Response time: 0.5 seconds
  • Dimensions of connection hoses: 500mm (20 in.) long, with 0.24 in. (6mm) I.D. and 0.35 in. (9mm) O.D.
  • Auto power off: After 20 minutes of inactivity
  • Operating temperature: 32° to 122°F (0° to 50°C) @ <80%RH
  • Weight: 7.8 oz. (220g)
  • Power source: "9V" battery (included) or optional #Z110VADPT 9V AC adaptor
  • Combined Accuracy: ±1% of full scale
Includes
  • Two connection hoses
  • Custom hard plastic carrying case
  • Battery
  • 1-year limited warranty
Dimensions
  • 7.2 x 2.8 x 1.2 in. (182 x 72 x 30mm)
