Hot Wire Anemometer-Thermometer with Excel-Formatted Data Logging SD Card and "K/J" Port

ITEM # HWA4214SD

Hot Wire Anemometer-Thermometer with Excel-Formatted Data Logging SD Card and "K/J" Port

The #HWA4214SD anemometer-thermometer can measure and log the output of exhaust fans and blowers. The hot wire sensor at the end of its telescoping probe can detect breezes as gentle as 40 ft./min (0.2 m/sec), making it ideal for low-airflow applications.

More

Best For:

Features

Details

  • Measures and displays air speed in several Imperial or metric units
  • Also measures and displays ambient temperature

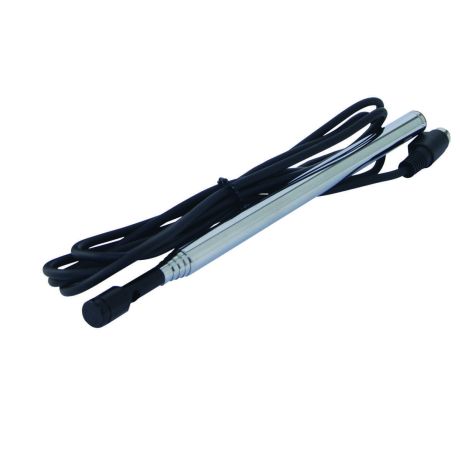

  • Includes the replaceable #P4214SD telescoping hot wire air speed-temperature probe
  • "K/J" port with automatic temperature compensation (ATC) for measuring surface temperature using an optional Type "K" or "J" thermocouple probe
  • Backlit 4-digit dual-readout LCD
  • Min/max memory + data hold
  • °F/°C switch
  • Auto power off (can be disabled for data logging)
  • Tripod mount
  • NIST calibration is available
Specifications

Specifications

  • Air speed measurement range/accuracy: 40 to 3940 ft./min (0.2 to 20m/sec)/±5% of reading
  • Air speed measurement maximum resolutions: 1 ft./min, 0.01 m/sec, 0.01 km/h, 0.01 mph and 0.01 knots
  • Ambient temperature measurement range/resolution: 32° to 122°F (0° to 50°C)/0.1°
  • Ambient temperature measurement accuracy: ±1.5°F (±0.8°C)
  • "K/J" port measurement range: -148° to 2372°F (-100° to 1300°C) with Type "K" thermocouple; -148° to 2012°F (-100° to 1100°C) with Type "J" thermocouple
  • "K/J" port measurement accuracy/resolution: ±0.4% of reading/0.1°
  • Data logging sampling time: Adjustable from 1 second to 1 hour
  • LCD size: 1.5 x 2.0 in. (38 x 52mm)
  • Extended length of telescoping probe: 37 in. (940mm)
  • Auto power off: After 10 minutes of inactivity
  • Operating temperature: 32° to 122°F (0° to 50°C) @ <85% RH
  • Weight (including batteries): 1.13 lb. (515g)
  • Power source: Six "AA" batteries (not included) or optional #AC1 9V AC adaptor

Includes

  • #P4214SD telescoping hot wire air speed-temperature probe
  • 2GB SD memory card
  • Custom hard plastic carrying case
  • 1-year limited warranty

DIMENSIONS

  • 8 x 3 x 1.5 in. (203 x 76 x 38mm)
Resources
FAQS

FAQS

Which models of temperature/humidity meters have data logging capability?

The following models of temperature/humidity meters have data logging capability: HT08, HT20, DL8835, LTH8809DL, LRTH185DL, LRTH185DL1, DTH3007SD, DLAF930SD, HWA2005DL, DAF4207SD, HWA4214SD, RHMG700DL
